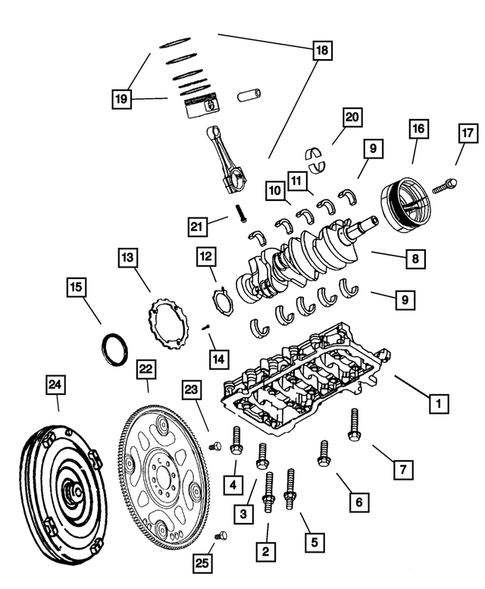

Crankshaft, Pistons and Torque Converter for 2002 Jeep Grand Cherokee
No.
Part # / Description / Price
Price
N/A
Torque Converter 1
Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Remanufactured
3
Hex Head Screw, Mounting Mopar
Mopar Description: M8x1.25x50. [M8x1.25x50.00]. Crankshaft Bearing Cap
$2.60
$2.60
6
$5.50
7
$5.20
8
Crankshaft Damper Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH HO ENGINE.
Description: Used With Cast Iron Crankshaft [Duel Mass]
9
9
Crankshaft Bearing Package Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE. ALL 4.7L V8 ENGINES.
Description: A Grade. Undersize .008mm for Journals 63.488-63.496mm. Undersize .008mm for Journals 63.488-63.496mm
$36.05
$36.05
10
Crankshaft Bearing Package Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE. ALL 4.7L V8 ENGINES.
Description: B Grade. Nominal for Journals 63.496-63.504mm. Nominal for Journals 63.496-63.504mm
10
11
Crankshaft Bearing Package Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE. ALL 4.7L V8 ENGINES.
Description: C Grade. Oversize .008mm for Journals 63.504-63.512mm. Oversize .008mm for Journals 63.504-63.512mm
11
11
14
Screw, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE. 4.7L V8 POWER TECH HO ENGINE.
Description: M6x1x25. Sensor Tone Ring To Crankshaft
16
Crankshaft Damper Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH HO ENGINE.
Description: Used With Forged Steel Crankshaft
18
Piston Pin And Rod Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH HO ENGINE.
Description: STD. High Output
18
Piston Pin And Rod Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE.
Description: STD. Superseded Piston No Longer Contains Piston Rings. Must Be Ordered Seperate. Up to 04/04/05
18
Piston Pin And Rod Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH HO ENGINE.
Description: STD. High Output
19
Piston Ring Package Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE. 4.7L V8 POWER TECH HO ENGINE.
Description: Standard Size. Also Included In Item 1 Piston Assembly. One [1] Package Does One [1] Piston
20
Connecting Rod Bearing Package Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH HO ENGINE.
Description: Standard
20
Connecting Rod Bearing Package Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE.
Description: Standard. See Note
21
Connecting Rod Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE.
Description: Connecting Rod Cap To Connecting Rod
21
Connecting Rod Bolt Mopar
Mopar Notes: Engines: 4.7L V8 POWER TECH ENGINE.
Description: Also Serviced With Item 1
22
Torque Converter Drive Plate Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Mega Cab
23
Hex Head Lock Bolt, Mounting Mopar
Mopar Description: M10X1.00X18.00. Torque Converter Drive Plate To Crankshaft
$8.25
$8.25
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
