Engine Identification, Service Engines & Engine Service Kits for 2009 Jeep Commander
No.
Part # / Description / Price
Price
1
Long Block Engine Gasket Kit
Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Installation. SEE NOTE The Gaskets That Are Included With The Upper And Lower Engine Gasket Kits May NOT Be Included With This Kit. If Gasket Is NOT Included It Is Indicated Below.
$588.00
$588.00
2
Engine Gasket Kit Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION. ALL AUTO TRANS (DO NOT USE 2010+).
Description: Upper. The Gaskets That Are Included With The Upper And Lower Engine Gasket Kits May NOT Be Included With This Kit. If Gasket Is NOT Included It Is Indicated Below.
3
Throttle Body To Intake Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: NOT Included With Long Block Engine Install Kit
$27.15
$27.15
4
Valve Guide Seal, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: NOT Included With Long Block Engine Install Kit
$17.35
$17.35
5
Exhaust Manifold Gasket, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: IMPORTANT NOTE:PAY CLOSE ATTENTION TO UP TO AND AFTER DATES AND QTY FOR BOLTS AND STUDS
$40.75
$40.75
6
Cylinder Head Gasket Mopar
Mopar Positions: Right
Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Right. NOT Included With Long Block Engine Install Kit
$105.00
$105.00
7
Pcv Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: NOT Included With Long Block Engine Install Kit or Upper Engine Gasket Kit, Must Order Separate
$24.35
$24.35
8
Intake Manifold Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
$13.60
$13.60
9
Pcv Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Large O Ring Upper Half Of PCV Valve Is Only Serviced.Small O Ring Lower Half Is Serviced With PCV Only
$7.45
$7.45
10
Cylinder Head Gasket Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Left. NOT Included With Long Block Engine Install Kit
$98.55
$98.55
11
Exhaust Manifold Gasket, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Left Side.
$40.75
$40.75
12
Cylinder Head Cover Gasket Kit, Right And Left Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Includes Spark Plug Well Gaskets
$107.00
$107.00
12
Cylinder Head Cover Gasket Kit Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Includes Spark Plug Well Seals
13
Spark Plug Well Gasket, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Included With Long Block Engine Install Kit
$21.20
$21.20
14
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Front. Included With Long Block Engine Install Kit
$36.25
$36.25
17
Water Pump Gasket Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: NOT Included With Long Block Engine Install Kit
$38.60
$38.60
18
Chain Case Cover Gasket Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Included With Long Block Engine Install Kit
$35.95
$35.95
19
Engine Oil Pan Gasket Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: SEE NOTE NOT Included With Long Block Engine Install Kit
$131.00
$131.00
21
Seal, Inboard, Small Mopar
Mopar Description: Oil Fiter Adapter Included With Long Block Engine Install Kit
$14.85
$14.85
22
Seal, Outboard, Large Mopar
Mopar Description: Oil Fiter Adapter Included With Long Block Engine Install Kit
$16.75
$16.75
No.
Part # / Description / Price
Price
1

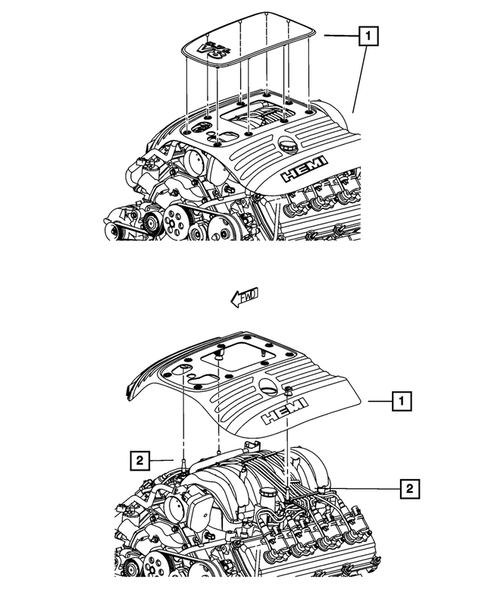

Engine Cover, Lower Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: With [HEMI] Markings
1
Engine Cover, Upper Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: With 5.7L V8 And [JEEP] Markings
2
Ball Stud, Mounting, Right And Left Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: 60X2.14X21.59. Side. To Intake Manifold
$63.00
$63.00
No.
Part # / Description / Price
Price
2

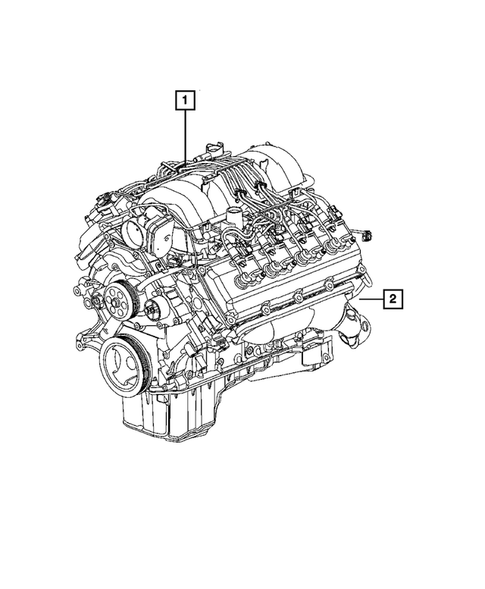

Long Block Engine 1 Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: SERVICE WARNING: If The Original Engine Has Experienced A Catastrophic Failure - Including Piston, Cylinder Bore, Valve, or Valve Seat Failure -The Intake Manifold Must Be Replaced With A New Manifold.. IMPORTANT PARTS PERSONAL: Your Technician/Customer MUST READ The Inclosed Instruction Sheet K6855858 Included With This Long Block Engine. For Vehicles Originally Equipped With A Plastic Oil Pan It Is MANDATORY The Pan Is Replaced Due To Oil Contamination
$4,465.00
$4,465.00
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
