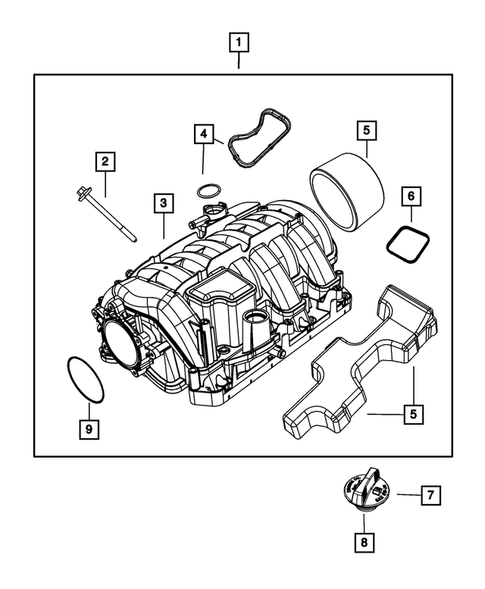

Manifolds and Vacuum Fittings for 2016 Jeep Grand Cherokee
No.
Part # / Description / Price
Price
1
Exhaust Manifold Gasket, Right Side
Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: IMPORTANT NOTE:PAY CLOSE ATTENTION TO UP TO AND AFTER DATES AND QTY FOR BOLTS AND STUDS
$40.75
$40.75
1
Exhaust Manifold Gasket, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Left Side.
$40.75
$40.75
2
Exhaust Manifold, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Nine (9) Hole Type Use Up To 03/05/2018
2
Exhaust Manifold, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Nine (9) Hole Type Use Up To 03/05/2018
$377.00
$377.00
2
Exhaust Manifold, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Nine (9) Hole Type Use Up To 03/05/2018
$273.00
$273.00
2
Exhaust Manifold, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Nine (9) Hole Type Use Up To 03/05/2018
$58.80
$58.80
3
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: M8X1.25XM6X1.00X75.50. Exhaust Outlet End Of The Manifold. Exhaust Manifold To Cylinder Head Exhaust Outlet End Of The Manifold
$17.15
$17.15
4
Double Ended Stud, Mounting, Right And Left Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: M8X1.25XM6X1X75.50. Side. Use Up To 06/04/2018. Exhaust Manifold
$10.50
$10.50
5
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: M6X1.00. Exhaust Manifold Heat Shield And Engine Oil Indicator Tube To Exhaust Manifold
$7.80
$7.80
6
Exhaust Manifold Shield, Right And Left, Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Use Up To 06/04/2018
$29.35
$29.35
7
U Nut Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: .375-16. Front Exhaust Y-Pipe To Exhaust Manifolds
$13.90
$13.90
8
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: .375-16X2.50. Front Exhaust Y-Pipe To Exhaust Manifolds
$24.60
$24.60
9
Hex Flange Head Bolt, Mounting Right Side Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: M8X1.25X48.50. This size bolt is only used for applications that use item 3 and 13 Tie Bars.. Exhaust Manifold To Cylinder Head
$11.20
$11.20
No.
Part # / Description / Price
Price
2
Engine Intake Manifold Kit Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: 68190715AA,AB Supersede To 68190715AC Intake Manifold Kit. Item 3 Ball Stud & Item 4 Bolts Are No Longer Included & Must Be Ordered Seperate
$9.40
$9.40
4
Pcv Seal Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: NOT Included With Long Block Engine Install Kit or Upper Engine Gasket Kit, Must Order Separate
$24.35
$24.35
5
Engine Pad Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: Round Pad In Rear Of Intake Manifold Is Serviced With Intake Manifold
$92.75
$92.75
5
Engine Pad Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: Rear Of Intake Manifold [Round]
$14.55
$14.55
6
Intake Manifold Seal Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
$13.60
$13.60
7
Oil Filler Cap Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE.
Description: With 5W20 Markings. Includes Oil Ring. Includes O-Ring.
$27.30
$27.30
8
Oil Filler Cap O Ring Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE W/ESS. 5.7L V8 MDS VVT ENGINE.
Description: Serviced With Oil Filler Cap.
$12.50
$12.50
9
Throttle Body To Intake Seal Mopar
Mopar Notes: Engines: 5.7L V8 MDS VVT ENGINE. 6.4L V8 SRT HEMI MDS Engine.
Description: NOT Included With Long Block Engine Install Kit
$27.15
$27.15
