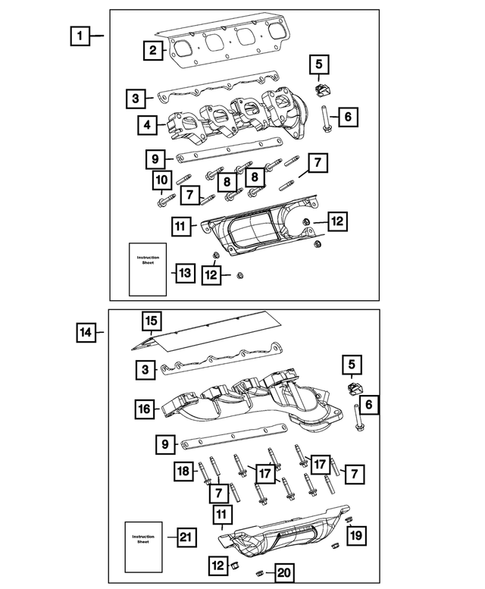

Manifolds and Vacuum Fittings for 2023 Jeep Wagoneer
No.
Part # / Description / Price
Price
1
Exhaust Manifold Kit
Mopar
Mopar Positions: Right
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Right Side
$227.00
$227.00
1
Exhaust Manifold Kit Mopar
Mopar Positions: Right
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Right Side
2
Exhaust Manifold Gasket, Right Side Mopar
Mopar Positions: Right
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: IMPORTANT NOTE:PAY CLOSE ATTENTION TO UP TO AND AFTER DATES AND QTY FOR BOLTS AND STUDS
$40.75
$40.75
3
Exhaust Manifold Tie Bar, Right And Left, Side Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Upper. Use For 06/04/2018 And After
$52.40
$52.40
5
U Nut Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: .375-16. Front Exhaust Y-Pipe To Exhaust Manifolds
$13.90
$13.90
6
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: .375-16X2.50. Front Exhaust Y-Pipe To Exhaust Manifolds
$24.60
$24.60
7
Double Ended Stud, Mounting, Right And Left Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: M8x1.25xm6x1.00x83.00. Side. Use For 06/04/2018 And After. Exhaust Manifold
$9.85
$9.85
9
Exhaust Manifold Tie Bar, Right And Left, Side Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Lower. Use For 06/04/2018 And After
$44.35
$44.35
10
Hex Flange Head Bolt, Mounting Right Side Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M8X1.25X48.50. This size bolt is only used for applications that use item 3 and 13 Tie Bars.. Exhaust Manifold To Cylinder Head
$11.20
$11.20
11
Exhaust Manifold Shield, Right And Left, Side Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Use For 06/04/2018 And After
$36.50
$36.50
12
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M6X1.00. Exhaust Manifold Heat Shield And Engine Oil Indicator Tube To Exhaust Manifold
$7.80
$7.80
14
Exhaust Manifold Kit Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Left Side
$139.00
$139.00
14
Exhaust Manifold Kit Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Left Side
$235.00
$235.00
15
Exhaust Manifold Gasket, Left Side Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Left Side.
$40.75
$40.75
No.
Part # / Description / Price
Price
1
Engine Intake Manifold Kit Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: ENGINE INTAKE
2
Throttle Body To Intake Seal Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: NOT Included With Long Block Engine Install Kit
$22.10
$22.10
4
Engine Intake Manifold Kit Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: 68190715AA,AB Supersede To 68190715AC Intake Manifold Kit. Item 3 Ball Stud & Item 4 Bolts Are No Longer Included & Must Be Ordered Seperate
$9.40
$9.40
5
Pcv Seal Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Large O Ring Upper Half Of PCV Valve Is Only Serviced.Small O Ring Lower Half Is Serviced With PCV Only
$7.45
$7.45
5
Pcv Seal Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: NOT Included With Long Block Engine Install Kit. System
$14.75
$14.75
6
Intake Manifold Seal Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Engine Valley Cover.
$18.95
$18.95
7
Engine Pad Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Round Pad In Rear Of Intake Manifold Is Serviced With Intake Manifold
$92.75
$92.75
9
Oil Filler Cap O Ring Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Serviced With Oil Filler Cap.
$12.50
$12.50
10
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M5.74X1.81X21.50. Intake Short Running Valve Actuator To Intake Manifold
$3.40
$3.40
11
Intake Short Running Valve Actuator Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: SHORT RUNNER VALVE
12
$11.45
13
Vacuum Cap Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT eTorque Engine Upg I. 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Intake Manifold Port
$7.20
$7.20
No.
Part # / Description / Price
Price
17
Vacuum Cap Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT eTorque Engine Upg I. 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Intake Manifold Port
$7.20
$7.20
No.
Part # / Description / Price
Price
22
Vacuum Cap Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT eTorque Engine Upg I. 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Intake Manifold Port
$7.20
$7.20
